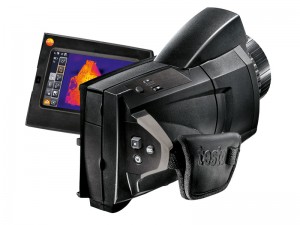

Testo 885-2 thermal imager for electrical/mechanical applications. Features a 320 x 240 60Hz infrared detector with a >30mK thermal sensitivity and a -20 to 350°C (-4 to 662°F) temperature range. Included SuperResolution Technology enhances image quality to 640 x 480.
Testo 885-2 thermal imager for electrical/mechanical applications. Features a 320 x 240 60Hz infrared detector with a >30mK thermal sensitivity and a -20 to 350°C (-4 to 662°F) temperature range. Included SuperResolution Technology enhances image quality to 640 x 480.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.
You can carry out damage-free tests on materials and components with the Testo 885-2 Thermal Imager. Thanks to the 320 x 240-pixel detector, in combination with the high-quality Germanium optics, the Testo 885-2 achieves excellent image quality. This allows weak spots and problems to be reliably detected in industrial and building thermography. In combination with the Testo SuperResolution technology, it records high-resolution thermal images in excellent quality (640 x 480 pixels).
Features
Applications
Providing Comprehensive Energy Advice, Reliable High Temperature Measurement, Electrical Maintenance Checks, Monitoring and Checking Solar Energy Systems, Analyzing Building Shells at a Glance, See Critical Temperatures on Circuit Boards Precisely.
| IR Resolution (Array Size) | 76,800 (320 x 240) |
| Thermal Sensitivity | < °C (30mK) |
| Field of View | 30°H x 23°V / 3.9" min. focus |
| Temperature Range | –20 to 350°C (-4 to 662°F) |
| Accuracy | ±2% rdg. |
| Measurement Modes | Spot, area, auto hot/cold, isotherm, average, surface moisture |
| Frame Refresh | 33 Hz |
| Thermal Palettes | 8 |
| Focus | Auto/Manual |
| Display Screen | 4.3" touchscreen |
| Visual Camera | Yes |
| Digital Zoom | 3x |
| Image Fusion | Twin Pix |
| PIcture-in-Picture | Yes |
| Memory Storage | 2GB SD card |
| Video Output | Yes |
| Insulation Alarm | Yes |
| Dewpoint Alarm | Yes |
| Color Alarm | Yes |
| LED Illuminator | Yes |
| Video Recording | Yes |
| Annotations | Bluetooth |
The patent-pending SuperResolution technology improves the thermal image quality of your Testo imagers with the included software upgrade. With SuperResolution, images have a higher resolution, and are therefore more detailed.
The important thing is that SuperResolution technology always records genuine temperature measuring values. There are no artificial intermediate values projected! This means that this technology offers the possibility of recording more temperature measuring values without using larger, more expensive detectors.
SuperResolution in Building Thermography
View hot-spots outside of a building in great detail, indicating poor insulation.
Inspect a floor heating system, ensuring that it is working properly.In building thermography, SuperResolution technology is ideally suited to fast and effective detection of building damage. Energy losses in buildings’ heating or air conditioning systems can also be analyzed with the help of the high-resolution thermal images. The high level of detail in the image makes inadequate insulation, resulting heat losses or construction defects clearly visible. Leakages can also be displayed precisely in the thermal image using SuperResolution technology.
SuperResolution in Industrial Thermography
Check for hot spots on fuses, to catch blow-outs before they happen.
Inspect for hot-spots on transformers, which can pose a safety hazard.SuperResolution technology also plays an important role in industrial maintenance – above all in the detailed early detection of imminent damage in production-related plant components. In the case of mechanical components too, thermal irregularities (e.g. due to friction or incorrect adjustment) can indicate an elevated level of stress. In the field of research and development, the geometric resolution of the thermal image is of great significance. This is improved by a factor of 1.6 by SuperResolution technology. This means that even smaller objects can be recorded, which enables the measurement of the smallest possible structures.
Click on a category to view a selection of compatible accessories with the Testo 885-2 Thermal Imaging Camera, 320 x 240 FPA, NETD < 30 mK.
