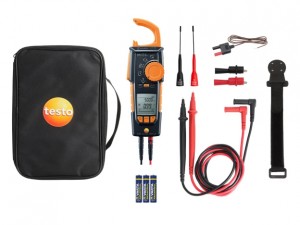

Automatically detect direct and alternating voltage with this non-contact True RMS clamp meter featuring Bluetooth® capability and fully retractable pincer arms designed for applications in tight spaces. Moreover, this kit includes a set of measuring cables, crocodile clips, micro clips, a magnetic holder, and a carrying case.
Automatically detect direct and alternating voltage with this non-contact True RMS clamp meter featuring Bluetooth® capability and fully retractable pincer arms designed for applications in tight spaces. Moreover, this kit includes a set of measuring cables, crocodile clips, micro clips, a magnetic holder, and a carrying case.
The most powerful model in the clamp meter series, the testo 770-3 calculates all output ratings and contains a Bluetooth interface that increases the instrument’s flexibility to collect more data at once to diagnosis common problems or electrical connections. With this clamp meter, technicians are able to connect to compatible instruments with the Testo Smart App to show the measurements as a graph or to document it directly in a report it offers lots of additional functions for those challenging tasks that you are faced with daily, e.g. communication with the testo smart app via Bluetooth. In addition, this clamp meter kit includes sets of testing accessories and a carrying pouch for easy portability.
Ideal for current and voltage measurements in compact heat pumps and mini split systems, this clamp meter features an innovative slide clamp design for safer wire testing in tight spaces, especially when working with thermistors and control panels. Automatic measurement parameter recognition ensures accurate voltage measurements, eliminating guesswork and enhancing safety. The rotary dial allows for additional measurements such as resistance, continuity, diode, and capacitance, reducing the need for multiple instruments in your toolkit.
Features
Applications
| True RMS | Yes |
| Basic accuracy | 0.1 % |
| Measuring Range | Voltage: 0.1 mV to 1000 V DC Current: 0.01 to 600 A AC/DC μA: 0.1 to 600 μA AC/DC Resistance: 0.01 Ω to 60 MΩ Frequency: 0.01 Hz to 9.999 kHz Capacitance: 0.001 nF to 60 mF Temperature: -20 to 500°C |
| Performance measurement | Yes |
| Bluetooth and Testo Smart App | Yes |
| Continuity testing | Yes |
| Diode test | Yes |
| Display (counts) | 6000 |
| Measurement category | CAT IV 600 V CAT III 1000 V |
| Approvals | CSA/ETL, CE Standards: EN 61326-1, EN 61140 |
| Environmental Conditions | Operating temperature: 14 to 122°F (-10 to 50°C) Storage temperature: 5 to 140°F (-15 to 60°C) |
| Dimensions | 9.57 x 3.78 x 1.69" (243 x 96 x 43 mm) |
| Weight | 0.8 lbs (378 g) |
Click on a category to view a selection of compatible accessories with the Testo 770-3 Premium True RMS AC/DC Clamp Meter Kit with Bluetooth®, 1000 V, 600 A.
