Read measurement data right on your smartphone or tablet thanks to the Bluetooth connectivity and the Testo Refrigeration app. With the added functionality of leak tests and hoses, this digital manifold kit is efficient and versatile enough to be used for every job.
Read measurement data right on your smartphone or tablet thanks to the Bluetooth connectivity and the Testo Refrigeration app. With the added functionality of leak tests and hoses, this digital manifold kit is efficient and versatile enough to be used for every job.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:

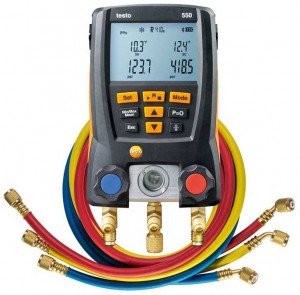

The Testo 550 Digital Manifold opens up new possibilities for efficient analysis and documentation thanks to the integration of Bluetooth connectivity with the Testo Refrigeration App. You can clearly read measurement data, such as automatic calculations of superheat and subcool on a Smartphone or Tablet, allowing you to work quickly and conveniently. In addition to this, measurement reports can be created and sent directly from the job site.
The rugged housing includes a metal frame around the display which protects the screen from impact. With 60 refrigerant profiles standard and the ability to update the refrigerant list directly from the app, you can be confident that your digital manifold will always be up to date. With the added functionality of leak tests and an optional kit which comes complete with hoses, this manifold is versatile enough to be the tool for every job.
Features
Refrigerants
With 60 refrigerant profiles standard and the ability to update the refrigerant list directly from the app, you can be confident that your digital manifold will always have what you need.
Included Refrigerants:
R11, R12, R123, R124YF, R1234ZE, R125, R13B1, R134A, R14, R142B, R152A, R161, R22, R227, R23, R290, R32, R401A, R401B, R401C, R402A, R402B, R404A, R406A, R407A, R407B, R407C, R407D, R407F, R408A, R409A, R410A, R411A, R412A, R413A, R414B, R416A, R417A, R420A, R421A, R421B, R422A, R422B, R422C, R422D, R424A, R426A, R427A, R434A, R437A, R438A, R502, R503, R507, R508A, R508B, R600, R600A, R744(CO2), R718 (H2O)
Download the App
| Pressure | |
| Measuring Range | -14.7 to 870 psi (-11 to 60 bar) |
| Accuracy (at 70°F) | ±0.5% fs |
| Resolution | 0.1 psi (0.01 bar) |
| Connection | 1/4" |
| Overload | 940 psi (65 bar) |
| Temperature | |
| Measuring Range | -58 to 302°F (-50 to 150°C) |
| Accuracy (at 70°F) | ±9°F (±0.5°C) |
| Resolution | 0.1°F (0.1°C) |
| Connections | 2 x Plug-in (NTC Probes) |
| Vacuum (Indication) | |
| Measuring Range | -14.7 to 0 psi (-1 bar to 0 bar) |
| General Specifications | |
| Dimensions | 8.7 x 4.0 x 2.75" (220 x 125 x 70mm) |
| Weight | 2.6 lbs (1200g) |
Click on a category to view a selection of compatible accessories with the Testo 550 Digital Manifold Kit with Hoses and Bluetooth.
| Pressure | |
| Measuring Range | -14.7 to 870 psi (-11 to 60 bar) |
| Accuracy (at 70°F) | ±0.5% fs |
| Resolution | 0.1 psi (0.01 bar) |
| Connection | 1/4" |
| Overload | 940 psi (65 bar) |
| Temperature | |
| Measuring Range | -58 to 302°F (-50 to 150°C) |
| Accuracy (at 70°F) | ±9°F (±0.5°C) |
| Resolution | 0.1°F (0.1°C) |
| Connections | 2 x Plug-in (NTC Probes) |
| Vacuum (Indication) | |
| Measuring Range | -14.7 to 0 psi (-1 bar to 0 bar) |
| General Specifications | |
| Dimensions | 8.7 x 4.0 x 2.75" (220 x 125 x 70mm) |
| Weight | 2.6 lbs (1200g) |
Click on a category to view a selection of compatible accessories with the Testo 550 Digital Manifold Kit with Hoses and Bluetooth.
