Combines field-replaceable, pre-calibrated sensor technology and a high level of safety for a long product life span and easy handling.
Combines field-replaceable, pre-calibrated sensor technology and a high level of safety for a long product life span and easy handling.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:

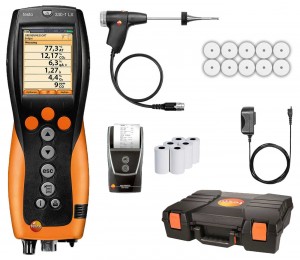

Print out measurement reports with this commercial/light industrial combustion analyzer kit featuring Bluetooth for a wireless connection to a smart device for remote operation and paperless documentation. In addition, the analyzer can transmit results by infrared to the printer.
Features
Applications
| Temperature | Range: -40 to 2,192°F Accuracy (±1 digit): ±0.9°C (0 to 212°F); ±0.5% of m.v. (remaining measurement range) Resolution: ±0.1°F (-40 to 1832°F) ±1°F (remaining measurement range) Storage: -4 to 122°F(-20 to 50°C) Operating: 23 to 113°F(-5 to 45°C) |
| Draft Measurement | Range: -4.01 to 16 inH2O Accuracy (±1 digit): ±0.008 inH20 or ±5% of m.v. (-0.2 to 0.24 inH20); ±0.01 inH20 (0.24 to 1.2 inH20); ±1.5% of m.v. (1.2 to 16 inH20) Resolution: 0.004 inH20 |
| Pressure Measurement | Range: 0 to 120 inH20 Accuracy (±1 digit): ±0.2 inH20 (0 to 20 inH20) ±1% of m.v. (20 to 40 inH20) ±1.5 % of m.v. (remaining measurement range) Resolution: 0.04 inH20 |
| O2 Measurement | Range: 0 to 21 vol% Accuracy (±1 digit): ±0.2 vol% Resolution: 0.1 vol% t90: <20 seconds |
| CO Measurement (Without H2 Compensation) | Range: 0 to 4000 ppm Accuracy (±1 digit): ±20 ppm (0 to 400 ppm); ±5% of m.v. (401 to 2000 ppm); ±10% of m.v. (2001 to 4000 ppm) Resolution: 1 ppm t90: <60 seconds |
| CO Measurement (H2 Compensated) | Range: 0 to 8000 ppm Accuracy (±1 digit): ±10 ppm or ±10% of m.v. (0 to 200 ppm); ±20 ppm or ±5% of m.v. (201 to 2000 ppm); ±10% of m.v. (2001 to 8000 ppm) Resolution: 1 ppm t90: <60 seconds |
| Option NO Measurement | Range: 0 to 3000 ppm Accuracy (±1 digit): ±5 ppm (0 to 100 ppm); ±5% of m.v. (101 to 2000 ppm); ±10% of m.v. (2001 to 3000 ppm) Resolution: 1 ppm t90: <30 seconds |
| Efficiency Testing (Eta) | Range: 0 to 120% Accuracy (±1 digit): 0.1% |
| Flue Gas Loss | Range: 0 to 99.9% Resolution: 0.1% |
| CO2 Determination (Digital Calculation From O2) | Range: Display area 0 to CO2 maximum Accuracy (±1 digit): ±0.2 vol% Resolution: 0.1 vol% t90: <40 seconds |
| Display | Color graphic display 240 x 320 Pixel |
| Memory | 500,000 readings |
| Power | Rechargeable battery pack: 3.7 V/2.6 Ah AC power supply: 6 V/1.2 A |
| Dimensions | 10.6 x 3.5 x 2.5" (26.92 x 8.89 x 6.35 cm) |
| Weight | 1.32 lbs (598.74 g) |
Click on a category to view a selection of compatible accessories with the Testo 330-1G LX Kit #4 Combustion Analyzer Kit with Printer and NOx.
