Testo 350 Boiler and Burner Kit

Model: 350 | Order No: 400563 3512

Testo 350 Boiler and Burner Kit-


Downloads: datasheet manual

Testo 350 Boiler and Burner Kit

Model: 350 | Order No: 400563 3512

Take O2, CO, NO and NO2 automatic calculations with fast tuning solutions. Compact design for working on a platform or small space.

Take O2, CO, NO and NO2 automatic calculations with fast tuning solutions. Compact design for working on a platform or small space.

Sale Price $18341.10 CAD
Regular Price $20379.00 CAD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 350 Boiler and Burner Kit

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 350 Boiler and Burner Kit

Testo 350 Offers

Features

  • Sensors in Kit:
    • O2
    • CO
    • NO
    • NO2
  • Bluetooth 2.0 communication
  • Internal memory to 250,000 readings
  • Advanced sensor temperature compensation
  • Multiple temperature measurement (stack, sensor, ambient)
  • Sample flow rate monitoring (EPA compliant)
  • Auto CO over-range protection
  • Thermoelectric sample conditioner with condensate removal pump
  • Fresh air valve for automatic programs and long term testing
  • Differential pressure measurement
  • USB connection
  • AC power cable
  • Automatic calculations:
    • CO2
    • Efficiency
    • Excess air
    • Loss
    • O2 reference for corrected emission values
  • 13" (33 cm) sampling probe (932°F (500°C) maximum) with 7' (2.13 m) hose
  • Extra particle filters
  • 6' (1.82 m) data bus communication cable

Applications

  • Optimize fuel efficiency and reduce emissions
  • Identify and troubleshoot bad burners
  • Inlet air or fuel delivery problems
  • Find O2 leaks in the flue gas paths or back pass
  • Characterize and troubleshoot air infiltration problems
  • Tune ammonia injection systems using NOx measurements
  • Perform emission monitoring for state and federal agencies.

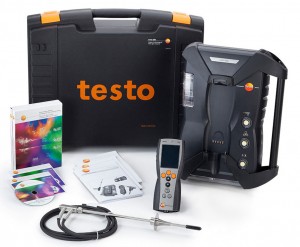

What's included with the Testo 350

  • 350 Industrial Flue Gas Analyser
  • Sensors in Kit:
    • O2
    • CO
    • NO
    • NO2
  • Easy Emission software
  • 6' (1.82 m) data bus communication cable
  • Extra particle filters
  • 13" (33 cm) sampling probe (932°F (500°C) maximum) with 7' (2.13 m) hose
  • Users Manual
  • Rugged case

Webinar: The Importance of CO/Combustion Testing


<p>We all know that exposure to high levels of CO is extremely dangerous, and can even be deathly. Making it crucial to measure Carbon Monoxide and combustion levels in your surrounding area, especially when working around fuel-burning appliances or flue gas conditions. Given this, our mission is to provide HVAC technicians and contractors with a better understanding of the theories of combustion, CO safety standards, and environmental compliance in commercial and residential fuel-burning appliances. We can help!</p><p>Recently, we teamed up with Testo to host an informative webinar! We provide you with detailed combustion testing recommendations and OEM specifications on different types of burners to ascertain and to make the right measurements, to interpret these measurement results, and take corrective action to ensure safe and efficient operation of the combustion process. In addition, We’ll review the current and recommended standards for CO safety in ambient air and in flue gas conditions.</p><p><strong>This webinar addresses the following issues:</strong></p><ul><li>Why is Testing CO/Combustion Important?</li><li>Basic Theories of Combustion & CO Safety</li><li>Recommended and Typical Test Results</li><li>Making Good Measurements of the Following Parameters...<br>Net Temperature, Oxygen (O<sub>2</sub>), Carbon Monoxide (CO), Stack Draft, NOx, NO, NO<sub>2</sub>, SO<sub>2</sub></li><li>Care & Service of Combustion Analyzers</li><li>New Testing Technologies (Testo 300)</li></ul>

Testo 350 Industrial Emissions Analyser - Replacing Sensors

Testo 350 Industrial Emissions Analyser - Carrying Out a Tightness Test


Testo 350 Industrial Emissions Analyser - Changing The Rechargeable Battery

Click on a category to view a selection of compatible accessories with the Testo 350 Boiler and Burner Kit.

Testo 0554 0549 Universal Infrared Printer 0554 0549
Includes a Wireless Infrared Interface, 1 Roll of Thermal Paper and 4xAA Batteries.




Testo 0554 0568 Thermal Printer Paper, 6 Rolls 0554 0568
For use with the 575 Printer. Measurement data documentation legible for up to 10 years. Package of 6 rolls.




Testo 0554 1202 Flue Gas Hose Extension, 9' 0554 1202
Extensions can be used toghether with the standard hose for a maximum length of 25 feet.




Testo 0554 2400 Sensor, CO2 0554 2400
CO2 (NDIR) 0 to 50% for use with the Testo 350 Turbine Testing Kit.




Testo 0554 2300 Hydrocarbons Sensor 0554 2300
Hydrocarbons (400-40,000 ppm) (min O2 required) for use with the Testo 350 Turbine Testing Kit.




Testo 400600 7810 Industrial Probe Kit 400600 7810
Kit: 39" probe 2,200 °F, non-heated adapter, 13' Teflon-lined hose.




Testo 0049 0076 Communication Cable, 16ft 0049 0076
16' Communication Cable for the Testo 350 Testing Kit.




Testo 0049 0077 Communication Cable, 65ft 0049 0077
65 Foot Communication Cable for the Testo 350 Testing Kit.
