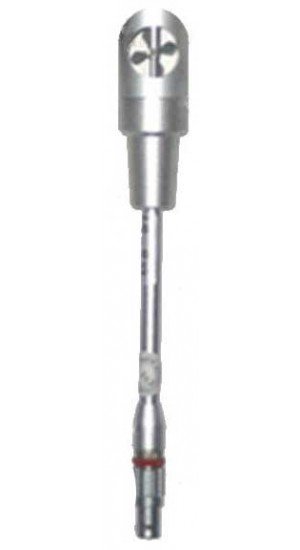

Vane/temperature probe, Ø 25 mm, can be attached to 0430 3545 handle or 0430 0941 telescopic handle.
Vane/temperature probe, Ø 25 mm, can be attached to 0430 3545 handle or 0430 0941 telescopic handle.
Use the 25 mm vane probe to determine flow velocity and volume flow in ventilation ducts. It is particularly suitable for flow velocities of up to +40 m/s.
Features
| Temperature TC Type K (NiCr-Ni) | -30 to +140 °C |
| Velocity / Volume flow Measuring range | +0.6 to +40 m/s |
| Accuracy | ±(0.2 m/s + 1 % of mv) (+0.6 to +40 m/s) |
| Length | 180 mm |
| Diameter | 25 mm |
| Temperature TC Type K (NiCr-Ni) | -30 to +140 °C |
| Velocity / Volume flow Measuring range | +0.6 to +40 m/s |
| Accuracy | ±(0.2 m/s + 1 % of mv) (+0.6 to +40 m/s) |
| Length | 180 mm |
| Diameter | 25 mm |
