In conjunction with an appropriate temperature measuring instrument – e.g. the testo 735 – the high-precision immersion/penetration probe can achieve a system accuracy of 0.05 °C at a resolution of 0.001 °C.
In conjunction with an appropriate temperature measuring instrument – e.g. the testo 735 – the high-precision immersion/penetration probe can achieve a system accuracy of 0.05 °C at a resolution of 0.001 °C.

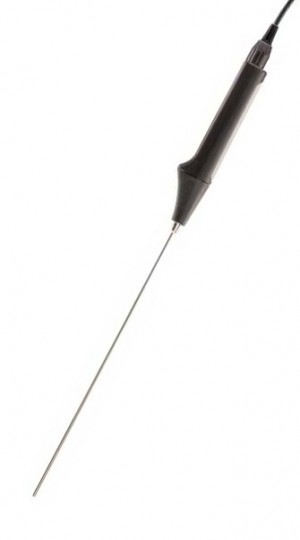

High-precision temperature measurements pose no problem for this immersion/penetration probe with Pt100 sensor. Combined with a suitable Testo temperature measuring instrument, such as the testo 735, its system accuracy is so high that the measurement system can also be used as a working standard.
Features
Applications
| Measuring range | -80 to +300 °C |
| Accuracy | ±0.3 °C (-80 to -40 °C) ; ±(0.1 °C + 0.05 % of mv) (-40 to 0 °C); ±0.05 °C (0 to +100 °C) ; ±(0.05 °C + 0.05 % of mv) (+100 to +300 °C) |
| Reaction time | 60 s |
| Length probe shaft | 295 mm |
| Diameter probe shaft | 4 mm |
| Measuring range | -80 to +300 °C |
| Accuracy | ±0.3 °C (-80 to -40 °C) ; ±(0.1 °C + 0.05 % of mv) (-40 to 0 °C); ±0.05 °C (0 to +100 °C) ; ±(0.05 °C + 0.05 % of mv) (+100 to +300 °C) |
| Reaction time | 60 s |
| Length probe shaft | 295 mm |
| Diameter probe shaft | 4 mm |
