Displays pressure and flow velocity simultaneously in an easy-to-read, large, backlit display. Measurement data is printed on site with date and time as well as minimum and maximum values.
Displays pressure and flow velocity simultaneously in an easy-to-read, large, backlit display. Measurement data is printed on site with date and time as well as minimum and maximum values.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:

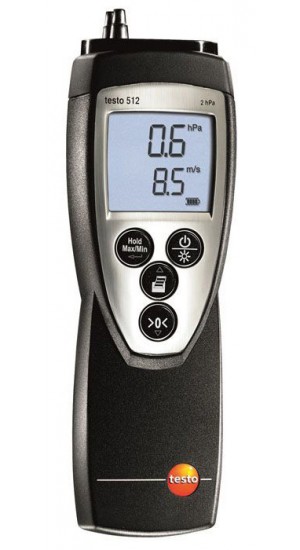

The Testo 512 provides simultaneous pressure and flow measurements in one compact, versatile instrument. It offers two user-switchable units of flow: feet per minute (fpm) and meters per second (m/s). Eight different units of pressure can be selected: psi, inches H20, inches Hg, kPa, hPa, Pa, mH20 and mHg. All readings are clearly visible on a large backlit display. The versatile Testo 512 provides smoothing between 1 and 20 display refreshes (0.5 sec) yielding a sliding mean reading. Density compensation is built-in. A separate HOLD-MIN-MAX button freezes readings and displays both flow and pressure extremes. Optional accessories include the Testo IR printer for on-site documentation of all measurements by date and time, plus the clear TopSafe for protection against dirt, moisture and impact.
Testo 512 Features
| Storage temperature | +14 to +160 °F |
| Operating temperature | +32 to +140 °F |
| Battery type | 9V battery |
| Battery life | 120 hr |
| Dimensions | 8 x 2.25 x 1.7 in |
| Housing material | ABS |
Pressure sensor integrated |
|
|---|---|
| Measuring range | 0 to +0.8 inH2O |
| Accuracy | 0.5% of f.v. |
| Resolution | 0.001 inH2O |
Click on a category to view a selection of compatible accessories with the Testo 512 Manometer/Anemometer, 0-2 hPa.
| Storage temperature | +14 to +160 °F |
| Operating temperature | +32 to +140 °F |
| Battery type | 9V battery |
| Battery life | 120 hr |
| Dimensions | 8 x 2.25 x 1.7 in |
| Housing material | ABS |
Pressure sensor integrated |
|
|---|---|
| Measuring range | 0 to +0.8 inH2O |
| Accuracy | 0.5% of f.v. |
| Resolution | 0.001 inH2O |
Click on a category to view a selection of compatible accessories with the Testo 512 Manometer/Anemometer, 0-2 hPa.
